Description

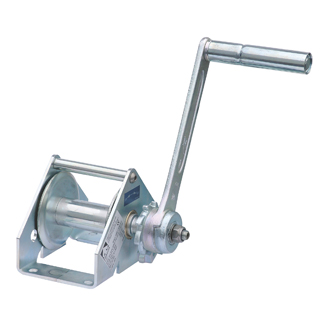

Product Overview – Base or Column mounted winch type KWV/KWE
Modern base or column mounted winch ideal for heavy duty applications
- Automatic load pressure brake prevents unintentional lowering of the load (Self Sustaining)
- Lifting capacity from 300kg to 1250kg
- Ideal for heavy duty
- Column or base mounting
- Lightweight
- High efficiency through spur gearing
- Smooth running
- All components on standard version are zinc plated and corrosion resistant
- Enclosed solid gears
- Complies with BS EN13157
- Also available as a stainless steel, detachable crank, rope pay-off/free wheel function and adjustable handle radius
| Product Type | Lifting capacity 1st layer (kg) | Lifting capacity last layer (kg) | Wire rope diameter (mm) | Wire rope capacity total (m) | Number of layers | Lift per crank turn (mm) | Required effort (kg) | Weight (kg) |
| KWE250 | 250 | 125 | 4 | 22 | 6 | 126 | 22 | 4 |
